产品中心 > TBR |
您现在的位置：网站首页 > 产品中心 |
|
|
| |
| |
|

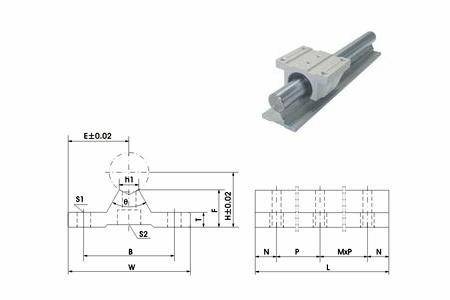

型号 |
轴径 |
主要尺寸 |
安装尺寸 |
重量(kg) |
|
H |
E |
W |
L |
F |
T |
h1 |
θ |
B |
N |
M × P |
S1 |
S2 |
|
STBR16-200 |
16 |
22.14 |
25 |
50 |
200 |
15 |
6 |
8 |
50° |
37 |
25 |
1×150 |
5.5 |
M5 |
0.220 |
|
STBR16-300 |
300 |
75 |
1×150 |
0.330 |
|
STBR16-400 |
400 |
50 |
2×150 |
0.440 |
|
STBR16-500 |
500 |
25 |
3×150 |
0.550 |
|
STBR16-600 |
600 |
75 |
3×150 |
0.660 |
|
STBR20-200 |
20 |
29.01 |
27.5 |
55 |
200 |
19.7 |
8 |
8 |
50° |
40 |
25 |
1×150 |
5.5 |
M6 |
0.328 |
|
STBR20-300 |
300 |
75 |
1×150 |
0.4924 |
|
STBR20-400 |
400 |
50 |
2×150 |
0.657 |
|
STBR20-500 |
500 |
25 |
3×150 |
0.821 |
|
STBR20-600 |
600 |
75 |
3×150 |
0.985 |
|
STBR25-200 |
25 |
32 |
32.5 |
65 |
200 |
20 |
10 |
8 |
50° |
45 |
25 |
1×150 |
6.5 |
M6 |
0.425 |
|
STBR25-300 |
300 |
50 |
1×200 |
0.638 |
|
STBR25-400 |
400 |
100 |
1×200 |
0.850 |
|
STBR25-500 |
500 |
50 |
2×200 |
1.067 |
|
STBR25-600 |
600 |
100 |
2×200 |
1.275 |
|
STBR30-200 |
30 |
36.52 |
37.5 |
75 |
200 |
22.3 |
12 |
10.3 |
60° |
55 |
25 |
1×150 |
6.5 |
M8 |
0.567 |
|
STBR30-300 |
300 |
50 |
1×200 |
0.851 |
|
STBR30-400 |
400 |
100 |
1×200 |
1.135 |
|
STBR30-500 |
500 |
50 |
2×200 |
1.418 |
|
STBR30-600 |
600 |
100 |
2×200 |
1.701 | |
| |
|
|
|
